Services: Embedded Systems

We have a good pool of talented Embedded Software & Hardware Engineers who are competent enough in dealing with wide range of software development, programming tools, microprocessors and real time operating systems. In the Embedded domain, we have taken on following:

Technologies that we deal in
  • All kinds of microcontrollers - Arduino, 8051, AVR, PIC, ARM, Raspberry Pi
  • All kinds of wireless/wired communication - GPS, GSM, GPIO, WiFi, Bluetooth, ZigBee, RF, SD card
  • All kinds of protocols - TCP/IP, USB, SPI, RS232 (UART), I2C
  • All kinds of Sensors - Proximity, Accelerometer, LDR, Touch Screen, Gyro, Humidity, Pressure, Temperature, RFID module, DTMF module
  • All kinds of motors for Robotics - DC, Stepper, Servo
  • All kinds of System Software Development - RTOS, Embedded Linux, Device Drivers, IoT, iOS, Android
  • All kinds of GUI application software development - C#, Java, .Net Framework
Complete Embedded Hardware and Software Solution

We deal in complete end to end next generation Embedded Hardware and Software solutions which involves

  • Feasibility study
  • Hardware component identification
  • Prototyping
  • Hardware development
  • Schematic development and PCB design
  • PCB manufacturing
  • Application software development
  • Deployment and customer support
Our Expertise

Some of the areas where we expertise for custom embedded solutions could be

  • Medical Engineering (devices and embedded software)
  • Automobile electronics parts and their testing automation
  • Defense services
Embedded Hardware and Software Solution
  • Automated Calibration Using IC Microchip for Automobile OEM:

    • Hardware Development

      • Includes AVR microcontroller powered by the USB port of the desktop
      • Device communicating to PC using RS-232 protocol interface
      • Barcode printing using thermal printer
      • Barcode reading through barcode scanner
      • PCB design and development with parts like ATmega8, USB to TTL bridge circuit, TFR resistance range reader
      • Validation and Verification
    • Software Component

      • Software Development in C# using MS Visual Studio
      • Developing the firmware for the peripherals which gets the input from the h/w and output instructions to the peripherals
      • RS-232 communication protocol is used for communication between PC and AVR micrcontroller
      • Validation and verification
      • Deployment and customer support

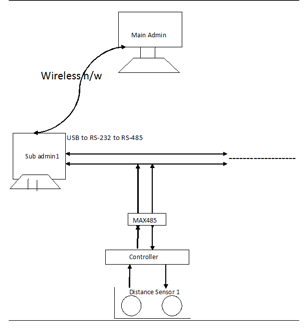

  • Automated Parking Monitring System:

    • Features

      • Parking area spread over 10000sqm
      • LED display for the full and empty slots in one lane
      • Adminstrator monitor the whole system from one location
      • LED TV DISPLAY at Entry/Exit Gate to display of the slots availablity
      • Wired and Wireless Communicaton
    • Funtionality

      • Calibration of distance of obstacle through Distance Sensor using Microcontroller
      • Making RS-485 compatible connection with microcontroller
      • One side of RS-485 to be connected to other side of RS-485 which can be converted through USB to RS-232 to RS-485 converter
      • USB side of converter is connected to PC.
      • Calibrated value of Distance Sensor can be seen in virtual terminal of sub-admin system to determine occupied and un-occupied slots.
      • Status of sub-admin systems is sent to Main –Admin through wireless sensor n/w
      • Deployment and Support

TECHNOLOGIES

  • Microcontrollers
    Arduino, 8051, AVR, PIC, ARM, Raspberry Pi
  • Wireless/Wired
    GPS, GSM, GPIO, WiFi, Bluetooth, ZigBee, RF, SD card
  • Protocols
    TCP/IP, USB, SPI, RS232 (UART), I2C
  • Sensors
    Proximity, Accelerometer, LDR, Touch Screen, Gyro, Humidity, Pressure, Temperature, RFID, DTMF
  • Motors
    DC, Stepper, Servo, Robotics
  • System Software
    RTOS, Embedded Linux, Device Drivers, Android, iOS, IoT
  • GUI Application Development Software
    C#, Java, .Net Framework
